Satellite Drag Modeling Example

This example demonstrates GP surrogate modeling for GRACE satellite drag coefficients, based on Chapter 2 of "Surrogates" by Robert Gramacy.

Overview

We will:

1. Load GRACE satellite drag coefficient data
2. Fit separable GPs for multiple atmospheric species
3. Make predictions and compute RMSPE
4. Combine species predictions for atmospheric mixture

Background

The GRACE satellite mission requires accurate drag coefficient (Cd) predictions for orbit determination. The drag coefficient depends on:

• Velocity magnitude (Umag)
• Surface temperature (Ts)
• Atmospheric temperature (Ta)
• Yaw and pitch angles (theta, phi)
• Accommodation coefficients (alphan, sigmat)

Data is available for 6 atmospheric species: He, O, O2, N, N2, H.

Setup

using laGP
using Downloads
using DelimitedFiles
using Random
using Statistics: mean

Random.seed!(42)

# Variable names
var_names = ["Umag", "Ts", "Ta", "theta", "phi", "alphan", "sigmat"]

# Atmospheric species
species_list = [:He, :O, :O2, :N, :N2, :H]

# Molecular masses (g/mol)
molecular_mass = Dict(
    :He => 4.003, :O => 15.999, :O2 => 31.998,
    :N => 14.007, :N2 => 28.014, :H => 1.008
)

Load Data

Download data from the TPM repository:

function load_grace_data(species::Symbol, n::Int)
    url = "https://bitbucket.org/gramacylab/tpm/raw/master/data/GRACE/CD_GRACE_$(n)_$(species).csv"
    io = IOBuffer()
    Downloads.download(url, io)
    seekstart(io)
    content = String(take!(io))

    lines = split(content, '\n')
    data_rows = Float64[]
    for line in lines[2:end]
        if !isempty(strip(line))
            values = parse.(Float64, split(line, ','))
            append!(data_rows, values)
        end
    end

    n_cols = length(split(lines[1], ','))
    return reshape(data_rows, n_cols, :)'
end

# Load training (n=1000) and test (n=100) data
train_data = Dict(s => load_grace_data(s, 1000) for s in species_list)
test_data = Dict(s => load_grace_data(s, 100) for s in species_list)

println("Loaded data for $(length(species_list)) species")
println("Training: 1000 points, Test: 100 points")

Normalize Data

function normalize_data(train, test)
    X_train_raw = train[:, 1:7]
    X_test_raw = test[:, 1:7]
    Y_train = train[:, 8]
    Y_test = test[:, 8]

    # Global normalization
    ranges = [(minimum(vcat(X_train_raw[:,j], X_test_raw[:,j])),
               maximum(vcat(X_train_raw[:,j], X_test_raw[:,j]))) for j in 1:7]

    X_train = similar(X_train_raw)
    X_test = similar(X_test_raw)
    for j in 1:7
        X_train[:, j] = (X_train_raw[:, j] .- ranges[j][1]) ./ (ranges[j][2] - ranges[j][1])
        X_test[:, j] = (X_test_raw[:, j] .- ranges[j][1]) ./ (ranges[j][2] - ranges[j][1])
    end

    return X_train, X_test, Y_train, Y_test
end

normalized = Dict(s => normalize_data(train_data[s], test_data[s]) for s in species_list)

Fit Separable GPs

gp_models = Dict{Symbol, GPsep{Float64}}()
predictions = Dict{Symbol, NamedTuple}()
rmspe_values = Dict{Symbol, Float64}()

for species in species_list
    X_train, X_test, Y_train, Y_test = normalized[species]

    # Match R example: fixed starting d=2 and g=1e-6
    m = size(X_train, 2)
    d_start = fill(2.0, m)
    g_fixed = 1e-6

    # Fit GP (optimize lengthscales only; keep nugget fixed)
    gp = new_gp_sep(X_train, Y_train, d_start, g_fixed)
    tmin = sqrt(eps(eltype(X_train)))
    tmax = m^2
    mle_gp_sep!(gp, :d; tmin=tmin, tmax=tmax, maxit=200, dab=nothing)

    # Predict
    pred = pred_gp_sep(gp, X_test; lite=true)

    # RMSPE
    pct_errors = ((pred.mean .- Y_test) ./ Y_test) .* 100
    rmspe = sqrt(mean(pct_errors.^2))

    gp_models[species] = gp
    predictions[species] = (mean=pred.mean, Y_test=Y_test)
    rmspe_values[species] = rmspe

    println("$species RMSPE: $(round(rmspe, digits=3))%")
end

RMSPE comparison across species:

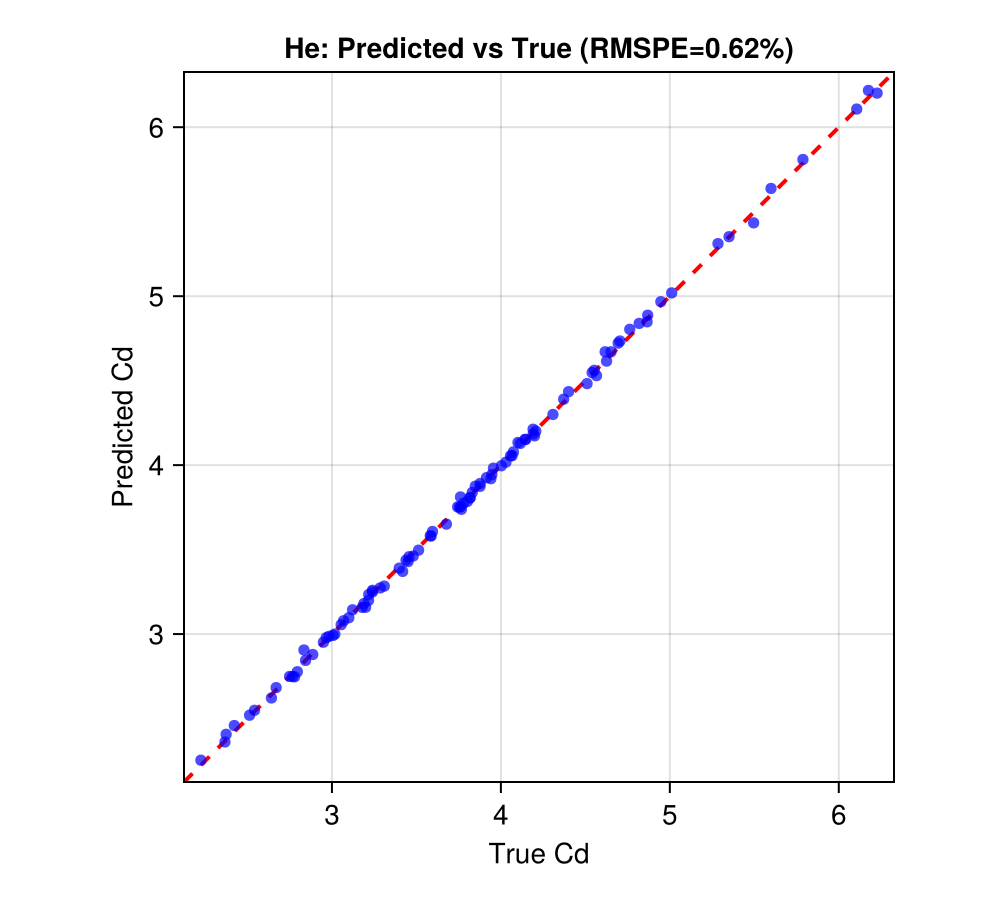

Parity plot for Helium predictions:

Atmospheric Mixture

Combine species predictions using mole fraction weighting:

# Example mole fractions at ~400 km altitude
mole_fractions = Dict(
    :O => 0.70, :N2 => 0.15, :He => 0.08,
    :O2 => 0.04, :N => 0.02, :H => 0.01
)

# Mass-weighted mixture
numerator = zeros(100)
denominator = zeros(100)
true_numerator = zeros(100)

for species in species_list
    weight = mole_fractions[species] * molecular_mass[species]
    numerator .+= predictions[species].mean .* weight
    true_numerator .+= predictions[species].Y_test .* weight
    denominator .+= weight
end

Cd_mix_pred = numerator ./ denominator
Cd_mix_true = true_numerator ./ denominator

# Mixture RMSPE
pct_errors_mix = ((Cd_mix_pred .- Cd_mix_true) ./ Cd_mix_true) .* 100
rmspe_mixture = sqrt(mean(pct_errors_mix.^2))

println("Mixture RMSPE: $(round(rmspe_mixture, digits=3))%")

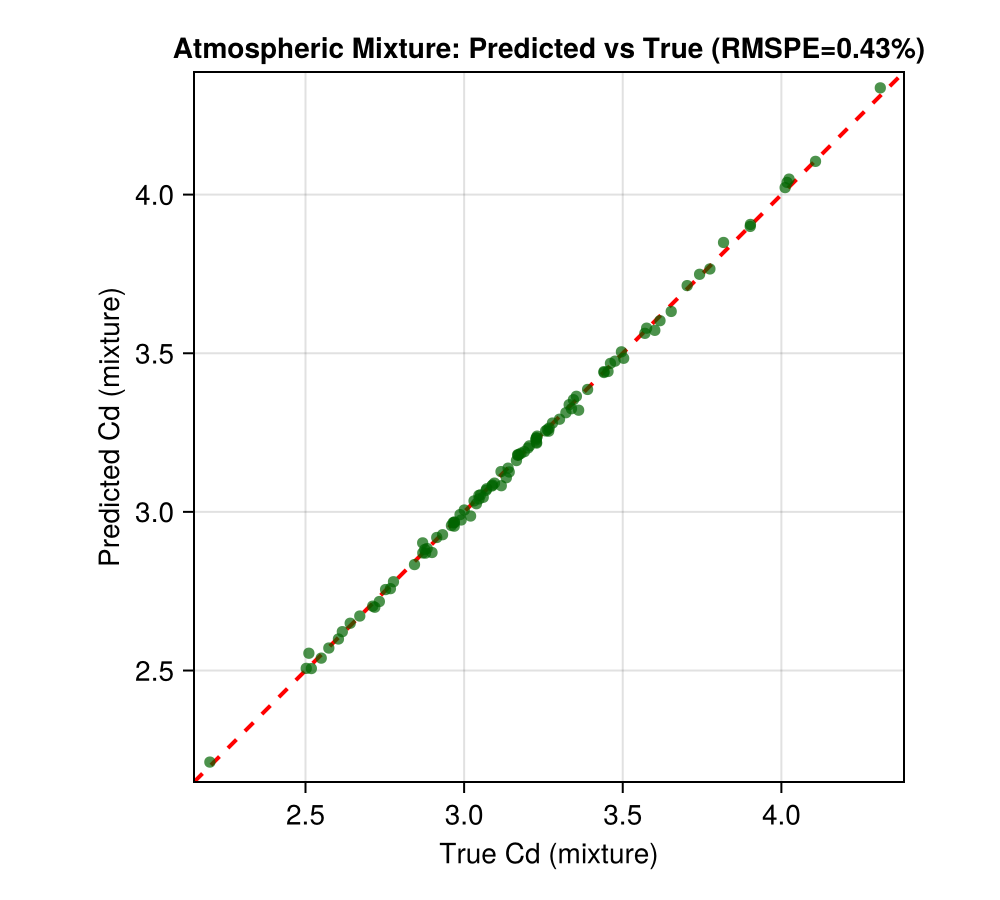

Parity plot for the atmospheric mixture predictions:

Lengthscale Analysis

println("\nLengthscales by variable (smaller = more important):")
println(rpad("Species", 8), join([rpad(v, 10) for v in var_names]))

for species in species_list
    d = gp_models[species].d
    vals = join([rpad(round(d[j], sigdigits=3), 10) for j in 1:7])
    println(rpad(string(species), 8), vals)
end

# Average importance
avg_d = zeros(7)
for species in species_list
    avg_d .+= gp_models[species].d
end
avg_d ./= length(species_list)

sorted_idx = sortperm(avg_d)
println("\nMost influential inputs:")
for i in 1:3
    j = sorted_idx[i]
    println("  $(var_names[j]): avg lengthscale = $(round(avg_d[j], sigdigits=3))")
end

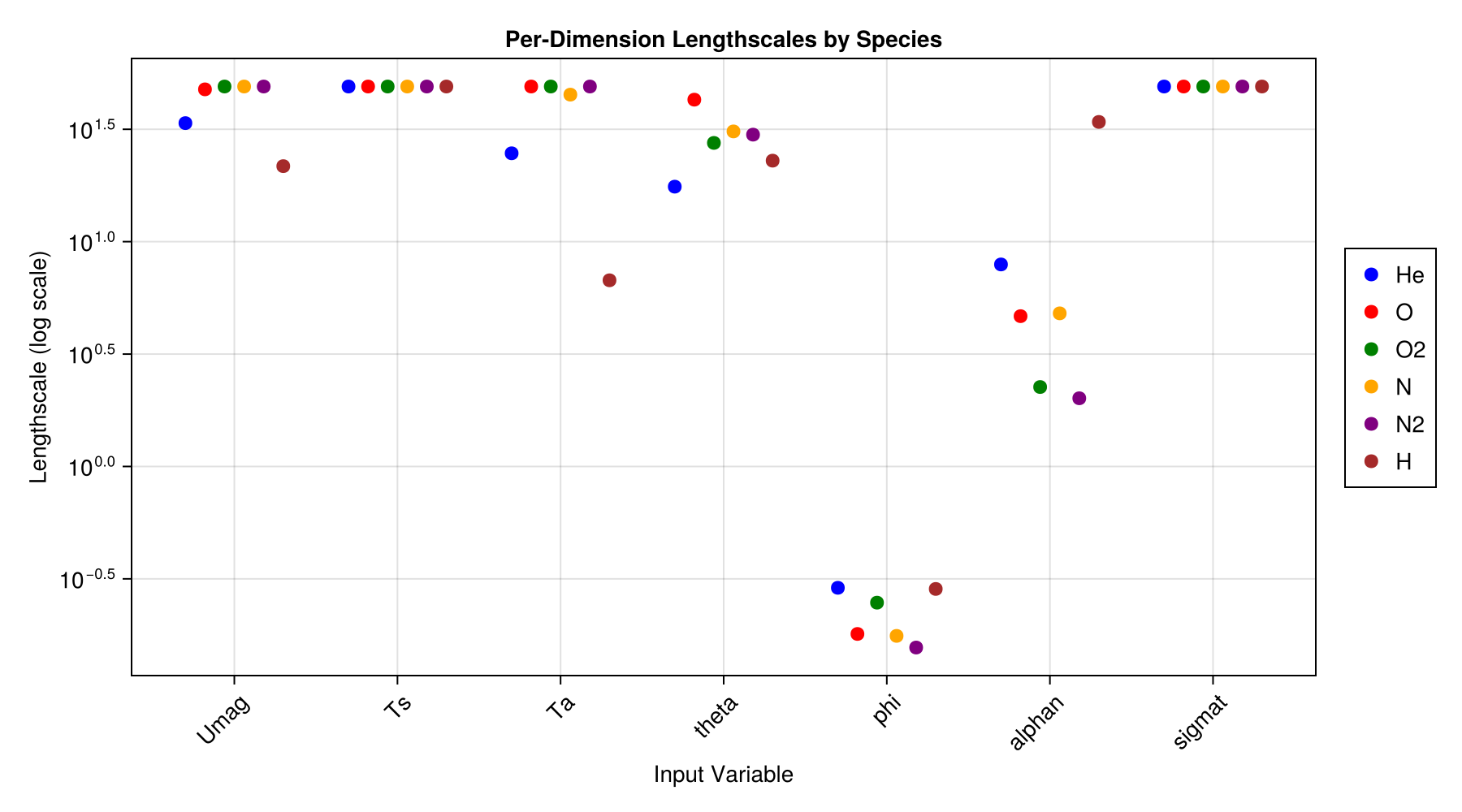

Lengthscales by species reveal which inputs matter most:

Main Effects (for Helium)

gp_he = gp_models[:He]
baseline = fill(0.5, 7)

n_me = 100
x_me = range(0.0, 1.0, length=n_me)

main_effects_he = Matrix{Float64}(undef, n_me, 7)

for j in 1:7
    XX = repeat(baseline', n_me, 1)
    XX[:, j] = collect(x_me)
    pred = pred_gp_sep(gp_he, XX; lite=true)
    main_effects_he[:, j] = pred.mean
end

println("\nHe sensitivity (effect range):")
for j in 1:7
    range_j = maximum(main_effects_he[:, j]) - minimum(main_effects_he[:, j])
    println("  $(var_names[j]): $(round(range_j, digits=4))")
end

Main effects for Helium show variable sensitivities:

Visualization (with CairoMakie)

using CairoMakie

# Parity plot for Helium
fig = Figure(size=(500, 450))
ax = Axis(fig[1, 1],
    xlabel="True Cd",
    ylabel="Predicted Cd",
    title="He: Predicted vs True (RMSPE=$(round(rmspe_values[:He], digits=2))%)",
    aspect=DataAspect()
)

Y_test = predictions[:He].Y_test
pred_he = predictions[:He].mean

lims = (minimum(vcat(Y_test, pred_he)) - 0.1, maximum(vcat(Y_test, pred_he)) + 0.1)
lines!(ax, [lims[1], lims[2]], [lims[1], lims[2]], color=:red, linewidth=2, linestyle=:dash)
scatter!(ax, Y_test, pred_he, color=:blue, markersize=8, alpha=0.7)

xlims!(ax, lims...)
ylims!(ax, lims...)

fig

Key Findings

1. Species variation: Different species have different drag characteristics
2. Input importance: Velocity magnitude and accommodation coefficients are most influential
3. Mixture benefit: Mixture RMSPE is often lower due to averaging effects
4. Separable advantage: Per-dimension lengthscales reveal input sensitivities
5. Scalability: GPs trained on 1000 points predict accurately on held-out data
