Multivariate Inputs with ARD

This example demonstrates how to fit a separable GP (also known as ARD - Automatic Relevance Determination) to multi-dimensional input data, allowing the model to learn different lengthscales for each input dimension. We also compare it to an isotropic GP to show why ARD is beneficial for anisotropic functions.

Why Per-Dimension Lengthscales?

In standard (isotropic) GPs, a single lengthscale parameter controls how quickly the function varies across all input dimensions. This assumes the function changes at the same rate regardless of direction - an isotropic assumption.

However, real-world functions are often anisotropic: they vary more rapidly in some directions than others. Consider:

• A function of (temperature, pressure) where small temperature changes have large effects but pressure changes matter less
• A spatial process where north-south correlation differs from east-west
• Any problem where some inputs are more "relevant" than others

The separable GP (or ARD kernel) addresses this by assigning a separate lengthscale d[k] to each input dimension k. The kernel becomes:

k(x, x') = exp(-Σₖ (xₖ - x'ₖ)² / dₖ)

A smaller lengthscale means the function varies more rapidly in that dimension (high sensitivity), while a larger lengthscale means smoother variation (low sensitivity). After fitting, the relative magnitudes of the lengthscales reveal which inputs matter most - hence "Automatic Relevance Determination."

The Problem with Isotropic

When the true function is anisotropic, an isotropic GP must pick a single "compromise" lengthscale that:

• Is too large for dimensions with rapid variation (underfitting those directions)
• Is too small for dimensions with slow variation (overfitting noise in those directions)

This leads to suboptimal predictions and a lower log-likelihood compared to a separable GP that can adapt to each dimension independently.

Setup

using laGP
using Random
using CairoMakie

Generate Training Data

We use a 2D test function with extreme anisotropy:

# Target function: y = sin(4*x₁) + 0.2*x₂ + noise
# Extreme anisotropy:
# - Fast oscillations in x₁ (needs small lengthscale)
# - Nearly linear in x₂ (needs large lengthscale)

Random.seed!(48392)

n = 100
X = -5.0 .+ 10.0 .* rand(n, 2)  # Uniform on [-5, 5]²

yerr = 0.1
y = sin.(4 .* X[:, 1]) .+ 0.2 .* X[:, 2] .+ yerr .* randn(n)

println("Training data: $n points in 2D, noise σ = $yerr")

Initialize Hyperparameters

Use data-driven initialization for the lengthscales and nugget:

# darg_sep returns ranges suitable for separable GP
# darg returns ranges suitable for isotropic GP
d_info_sep = darg_sep(X)
d_info_iso = darg(X)
g_info = garg(y)

println("Separable lengthscale range: [$(d_info_sep.ranges[1].min), $(d_info_sep.ranges[1].max)]")
println("Isotropic lengthscale range: [$(d_info_iso.min), $(d_info_iso.max)]")
println("Nugget range: [$(g_info.min), $(g_info.max)]")

# Set up optimization ranges
grange = (g_info.min, g_info.max)

Fit Isotropic GP

First, let's fit an isotropic GP to see its limitations:

# Create isotropic GP (single lengthscale for all dimensions)
gp_iso = new_gp(X, y, d_info_iso.start, g_info.start)

# Optimize via joint MLE
drange_iso = (d_info_iso.min, d_info_iso.max)
result_iso = jmle_gp!(gp_iso; drange=drange_iso, grange=grange, verb=0)

println("Isotropic GP:")
println("  d = $(round(gp_iso.d, sigdigits=4))")
println("  g = $(round(gp_iso.g, sigdigits=4))")
println("  log-likelihood = $(round(llik_gp(gp_iso), sigdigits=4))")

The isotropic GP finds a single lengthscale that must serve all dimensions. This is a compromise value.

Fit Separable GP

Now fit a separable GP that can learn per-dimension lengthscales:

# Initial lengthscales (same for both dimensions)
d_init = [d_info_sep.ranges[1].start, d_info_sep.ranges[2].start]

# Create GP with per-dimension lengthscales
gp_sep = new_gp_sep(X, y, d_init, g_info.start)

# Joint MLE optimization
drange_sep = (d_info_sep.ranges[1].min, d_info_sep.ranges[1].max)
result_sep = jmle_gp_sep!(gp_sep; drange=drange_sep, grange=grange, verb=0)

println("Separable GP:")
println("  d = $(round.(gp_sep.d, sigdigits=4))")
println("  g = $(round(gp_sep.g, sigdigits=4))")
println("  log-likelihood = $(round(llik_gp_sep(gp_sep), sigdigits=4))")

Comparing the Results

Let's compare the two models:

llik_iso = llik_gp(gp_iso)
llik_sep = llik_gp_sep(gp_sep)

println("Log-likelihood comparison:")
println("  Isotropic:  $(round(llik_iso, sigdigits=5))")
println("  Separable:  $(round(llik_sep, sigdigits=5))")
println("  Difference: $(round(llik_sep - llik_iso, sigdigits=4)) (separable is better)")

println("\nLengthscale comparison:")
println("  Isotropic d = $(round(gp_iso.d, sigdigits=4)) (single value)")
println("  Separable d = $(round.(gp_sep.d, sigdigits=4)) (per-dimension)")

Key observations:

1. Higher log-likelihood: The separable GP achieves a better fit to the data
2. Compromise lengthscale: The isotropic d falls between the separable d[1] and d[2]
3. Captured anisotropy: The separable GP correctly identifies that x₁ needs a shorter lengthscale (faster variation) than x₂

Interpreting the Lengthscales

The optimized lengthscales reveal the function's anisotropic structure:

println("Lengthscale interpretation:")
println("  d[1] (x₁ dimension) = $(round(gp_sep.d[1], sigdigits=4))")
println("  d[2] (x₂ dimension) = $(round(gp_sep.d[2], sigdigits=4))")

if gp_sep.d[1] < gp_sep.d[2]
    ratio = gp_sep.d[2] / gp_sep.d[1]
    println("  → x₁ is $(round(ratio, sigdigits=2))x more sensitive (smaller lengthscale)")
end

For our test function sin(4*x₁) + 0.2*x₂, we expect d[1] << d[2] because:

• The sin(4*x₁) term creates fast oscillations along the x₁ axis
• The 0.2*x₂ term is nearly linear - very slow variation in x₂

The MLE correctly identifies this extreme anisotropy: x₁ requires a much shorter lengthscale to capture the rapid oscillations, while x₂ needs a large lengthscale for its gentle linear trend.

Prediction

# Create prediction grid
n_x1, n_x2 = 100, 50
x1_grid = range(-5, 5, length=n_x1)
x2_grid = range(-5, 5, length=n_x2)

# Build test matrix
XX = Matrix{Float64}(undef, n_x1 * n_x2, 2)
let idx = 1
    for j in 1:n_x2
        for i in 1:n_x1
            XX[idx, 1] = x1_grid[i]
            XX[idx, 2] = x2_grid[j]
            idx += 1
        end
    end
end

# True function (no noise) for reference
y_true = sin.(4 .* XX[:, 1]) .+ 0.2 .* XX[:, 2]
true_grid = reshape(y_true, n_x1, n_x2)

# Get predictions for both GPs
pred_iso = pred_gp(gp_iso, XX; lite=true)
pred_sep = pred_gp_sep(gp_sep, XX; lite=true)

# Reshape for plotting
mean_iso_grid = reshape(pred_iso.mean, n_x1, n_x2)
std_iso_grid = reshape(sqrt.(pred_iso.s2), n_x1, n_x2)
mean_sep_grid = reshape(pred_sep.mean, n_x1, n_x2)
std_sep_grid = reshape(sqrt.(pred_sep.s2), n_x1, n_x2)

Visualization

fig = Figure(size=(1100, 1200))

# Use consistent colormap limits based on true function range
clims = (minimum(y_true), maximum(y_true))

# Row 1: True function (reference)
ax_true = Axis(fig[1, 1:3], xlabel="x₁", ylabel="x₂",
               title="True Function: y = sin(4x₁) + 0.2x₂")
hm_true = heatmap!(ax_true, collect(x1_grid), collect(x2_grid), true_grid',
                   colormap=:viridis, colorrange=clims)
scatter!(ax_true, X[:, 1], X[:, 2], color=:white, markersize=4,
         strokecolor=:black, strokewidth=0.5)
Colorbar(fig[1, 4], hm_true, label="y")

# Row 2: Isotropic GP
ax1 = Axis(fig[2, 1], xlabel="x₁", ylabel="x₂", title="Isotropic GP: Mean")
hm1 = heatmap!(ax1, collect(x1_grid), collect(x2_grid), mean_iso_grid',
               colormap=:viridis, colorrange=clims)
scatter!(ax1, X[:, 1], X[:, 2], color=:white, markersize=4,
         strokecolor=:black, strokewidth=0.5)
Colorbar(fig[2, 2], hm1, label="Mean")

ax2 = Axis(fig[2, 3], xlabel="x₁", ylabel="x₂", title="Isotropic GP: Uncertainty (Std)")
hm2 = heatmap!(ax2, collect(x1_grid), collect(x2_grid), std_iso_grid', colormap=:plasma)
scatter!(ax2, X[:, 1], X[:, 2], color=:white, markersize=4,
         strokecolor=:black, strokewidth=0.5)
Colorbar(fig[2, 4], hm2, label="Std")

# Row 3: Separable GP
ax3 = Axis(fig[3, 1], xlabel="x₁", ylabel="x₂", title="Separable GP (ARD): Mean")
hm3 = heatmap!(ax3, collect(x1_grid), collect(x2_grid), mean_sep_grid',
               colormap=:viridis, colorrange=clims)
scatter!(ax3, X[:, 1], X[:, 2], color=:white, markersize=4,
         strokecolor=:black, strokewidth=0.5)
Colorbar(fig[3, 2], hm3, label="Mean")

ax4 = Axis(fig[3, 3], xlabel="x₁", ylabel="x₂", title="Separable GP (ARD): Uncertainty (Std)")
hm4 = heatmap!(ax4, collect(x1_grid), collect(x2_grid), std_sep_grid', colormap=:plasma)
scatter!(ax4, X[:, 1], X[:, 2], color=:white, markersize=4,
         strokecolor=:black, strokewidth=0.5)
Colorbar(fig[3, 4], hm4, label="Std")

# Summary labels
iso_label = "Isotropic: d=$(round(gp_iso.d, sigdigits=3)), llik=$(round(llik_iso, sigdigits=4))"
sep_label = "Separable: d₁=$(round(gp_sep.d[1], sigdigits=3)), d₂=$(round(gp_sep.d[2], sigdigits=3)), llik=$(round(llik_sep, sigdigits=4))"

Label(fig[0, :], "Isotropic vs Separable GP Comparison\n$iso_label\n$sep_label", fontsize=14)

fig

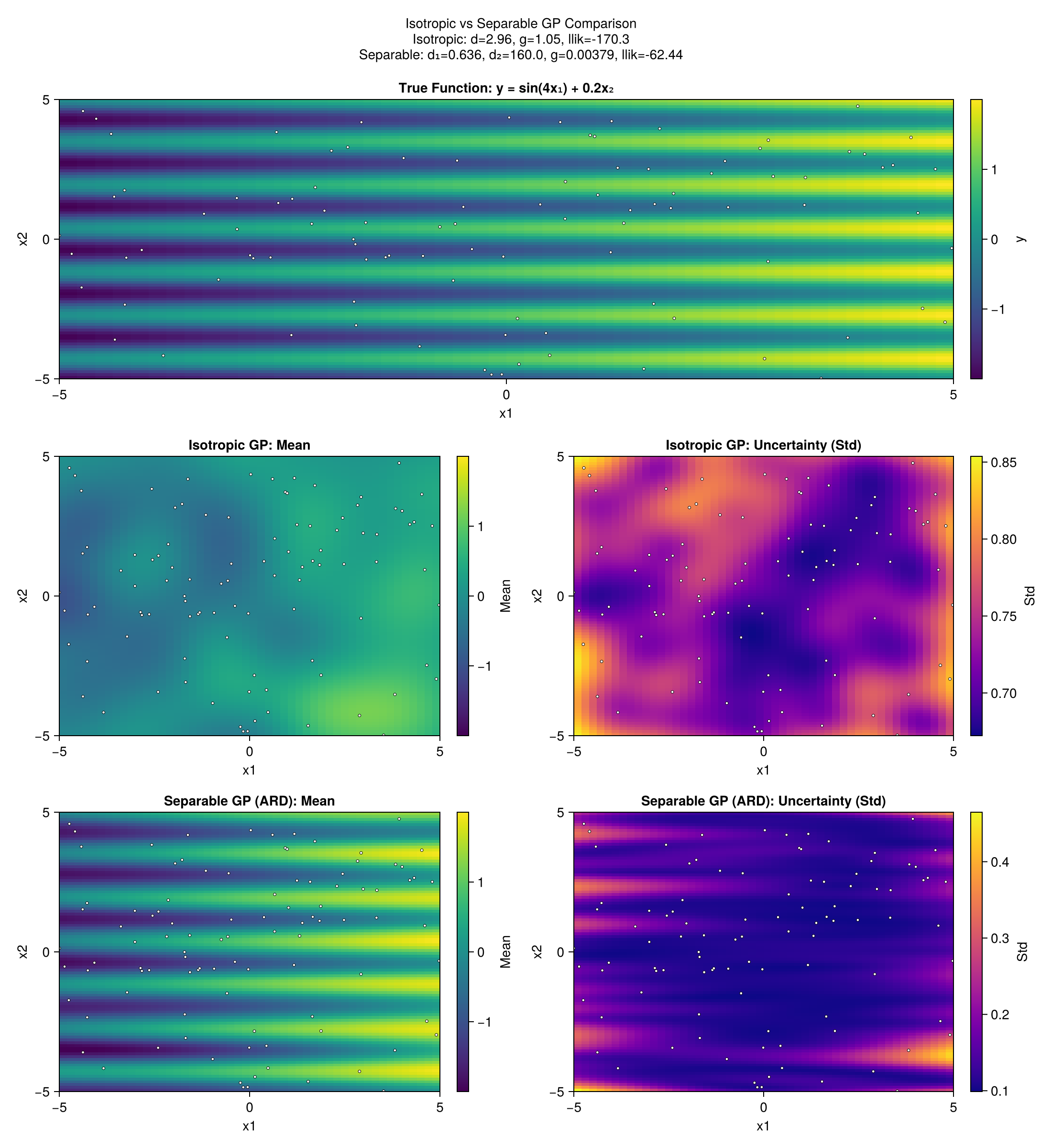

The comparison shows:

• Row 1 (True Function): The ground truth with fast oscillations in x₁ and a gentle linear trend in x₂
• Row 2 (Isotropic): The isotropic GP completely misses the oscillations - it treats them as noise (notice the huge nugget). The surface is nearly flat.
• Row 3 (Separable): The separable GP correctly captures the oscillating pattern by using a small lengthscale for x₁ and a large lengthscale for x₂

Summary: Isotropic vs Separable

Key Concepts

Isotropic vs Separable (ARD) Kernels

When to Use ARD

Use GPsep (separable/ARD) when:

• Input dimensions have different scales or units - e.g., mixing temperature (°C) and concentration (mol/L)
• Some inputs may be irrelevant - ARD can discover this via large lengthscales
• Physical intuition suggests anisotropy - directional processes, hierarchical effects
• Variable importance is of interest - lengthscale ratios indicate relative sensitivity

Use GP (isotropic) when:

• Dimensions are exchangeable - e.g., spatial coordinates with no preferred direction
• Limited data - fewer parameters means less overfitting risk
• Computational efficiency - isotropic kernels can be slightly faster

Practical Notes

1. Initialization: Both dimensions start with the same lengthscale. The optimizer then differentiates them based on the data.

2. Identifiability: With very little data, ARD lengthscales may not be well-determined. Consider isotropic GP if you have fewer than ~10 points per dimension.

3. Scaling inputs: For best results, normalize inputs to similar ranges before fitting. This prevents numerical issues and makes lengthscale magnitudes comparable.

4. Nugget estimation: The nugget g captures observation noise plus any unmodeled small-scale variation. A larger nugget indicates noisier data or model misspecification.
