Bayesian Optimization

This example demonstrates a simple Bayesian optimization workflow using laGP.jl as the GP surrogate model. The visualization style is inspired by BayesianOptimization.jl.

Overview

Bayesian optimization is a sequential strategy for finding the optimum of expensive black-box functions. At each iteration:

1. Fit a GP to all observations collected so far
2. Compute an acquisition function that balances exploration vs exploitation
3. Evaluate the objective at the acquisition function's maximum
4. Repeat until budget exhausted

Key Differences from BayesianOptimization.jl

Setup

using laGP
using CairoMakie
using Random
using Distributions: TDist, quantile

Random.seed!(11)

Objective Function

We use a classic test function with a global maximum near x ≈ 2:

f(x) = exp(-(x - 2)^2) + exp(-(x - 6)^2 / 10) + 1 / (x^2 + 1)

Domain: [-2, 10]

UCB Acquisition Function

The Upper Confidence Bound (UCB) acquisition function balances exploration and exploitation:

\[\text{UCB}(x) = \mu(x) + \kappa \cdot \sigma(x)\]

where:

• μ(x) is the GP posterior mean (exploitation)
• σ(x) is the GP posterior standard deviation (exploration)
• κ controls the exploration-exploitation tradeoff

function ucb(mean, variance, κ=5.0)
    return mean .+ κ .* sqrt.(variance)
end

Higher κ values encourage more exploration of uncertain regions.

Sequential Optimization

Initial Observations

Start with 2 random points:

n_init = 2
X_obs = rand(n_init) .* 12 .- 2  # uniform in [-2, 10]
X_obs = reshape(X_obs, :, 1)
Y_obs = f.(X_obs[:, 1])

Optimization Loop

# Prediction grid
x_grid = collect(range(-2, 10, length=200))
X_pred = reshape(x_grid, :, 1)

κ = 5.0  # UCB exploration parameter

for iter in 1:7
    # Fit GP with MLE
    d_range = darg(X_obs)
    gp = new_gp(X_obs, Y_obs, d_range.start, 1e-6)  # small nugget
    mle_gp!(gp, :d; drange=(d_range.min, d_range.max), tmax=20)

    # Predict
    pred = pred_gp(gp, X_pred; lite=true)

    # Compute UCB and find next point
    ucb_vals = ucb(pred.mean, pred.s2, κ)
    x_next = x_grid[argmax(ucb_vals)]

    # Evaluate objective and add observation
    X_obs = vcat(X_obs, [x_next;;])
    Y_obs = vcat(Y_obs, f(x_next))
end

Why Small Nugget?

Since our objective function is deterministic (noise-free), we use a small nugget (1e-6) for near-interpolation. For noisy objectives, increase the nugget or optimize it via jmle_gp!().

Visualization

The two-panel visualization shows:

Upper panel: GP surrogate with 95% credible interval

• True function (solid black)
• GP mean (dashed black)
• 95% CI using Student-t distribution (gray band)
• Observations (red circles)

Lower panel: UCB acquisition function

• UCB values (dark gray line)
• Next evaluation point (red star)

function plot_bo_step(x_grid, pred, X_obs, Y_obs, ucb_vals, x_next, κ; iter=1)
    fig = Figure(size=(700, 600))

    # Upper panel: GP fit
    ax1 = Axis(fig[1, 1],
        title="Gaussian Process Fit (Iteration $iter)",
        ylabel="f(x)")

    lines!(ax1, x_grid, f.(x_grid), color=:black, linewidth=1.5, label="True f(x)")
    lines!(ax1, x_grid, pred.mean, color=:black, linestyle=:dash,
           linewidth=2, label="GP mean")

    # 95% CI using Student-t (correct for concentrated likelihood)
    t_crit = quantile(TDist(pred.df), 0.975)
    std_pred = sqrt.(pred.s2)
    lower = pred.mean .- t_crit .* std_pred
    upper = pred.mean .+ t_crit .* std_pred
    band!(ax1, x_grid, lower, upper, color=(:gray, 0.3), label="95% CI")

    scatter!(ax1, vec(X_obs), Y_obs, color=:red, marker=:circle,
             markersize=10, label="Observations")
    axislegend(ax1, position=:rt)

    # Lower panel: Acquisition function
    ax2 = Axis(fig[2, 1],
        title="UCB Acquisition (κ=$κ)",
        xlabel="x", ylabel="UCB(x)")

    lines!(ax2, x_grid, ucb_vals, color=:gray40, linewidth=2)
    scatter!(ax2, [x_next], [ucb_vals[argmax(ucb_vals)]],
             color=:red, marker=:star5, markersize=20, label="Next point")
    axislegend(ax2, position=:rt)

    return fig
end

Why Student-t Distribution?

laGP uses a concentrated (profile) likelihood that marginalizes out the variance parameter τ². This means the posterior predictive distribution follows a Student-t distribution with df = n (number of training observations), not a Normal distribution. Using TDist gives more accurate credible intervals, especially with few observations.

Results

The optimization converges to the global maximum near x ≈ 2 within 5-7 iterations.

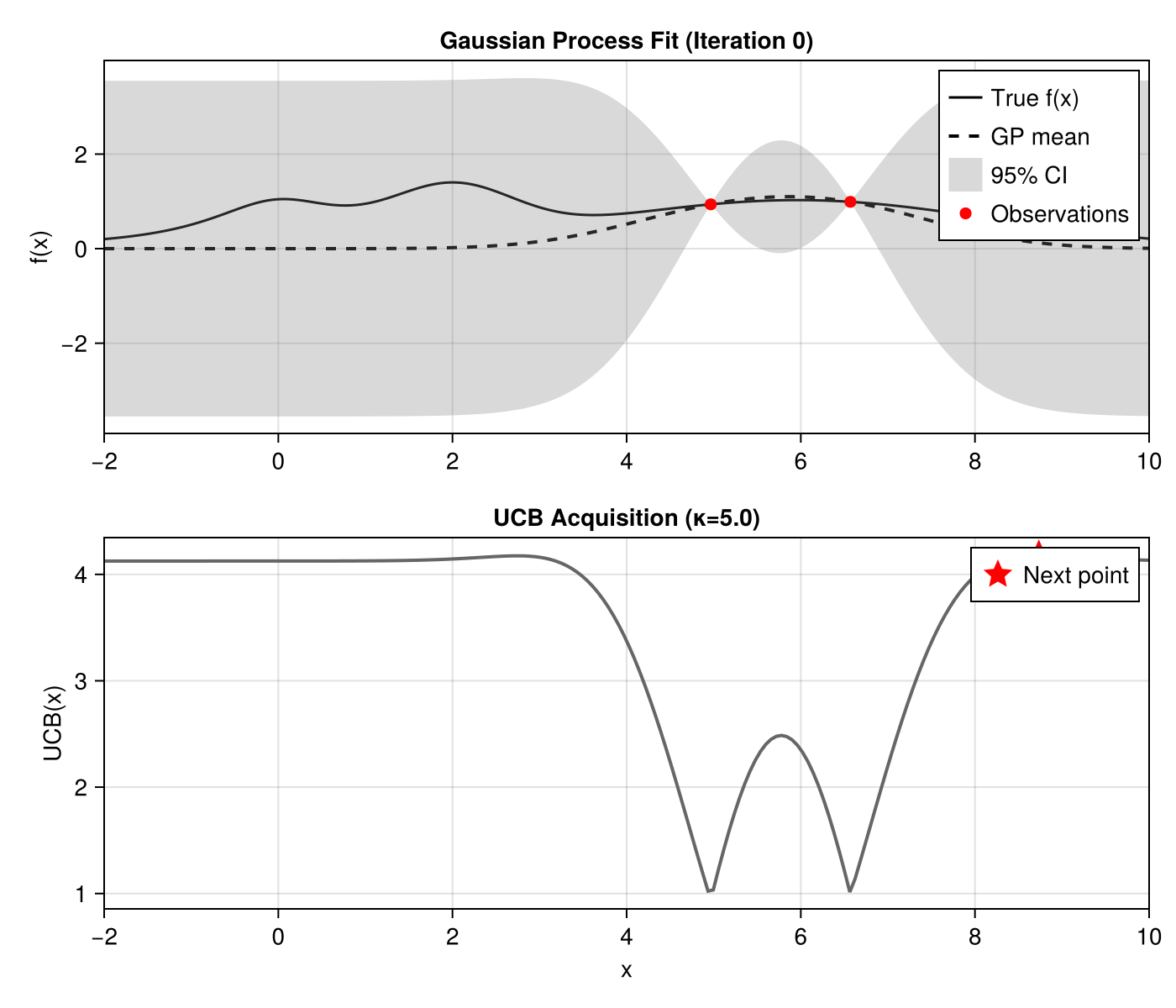

Iteration 0: Initial State

With only 2 random observations, the GP has high uncertainty. The UCB acquisition function explores the boundaries where uncertainty is highest.

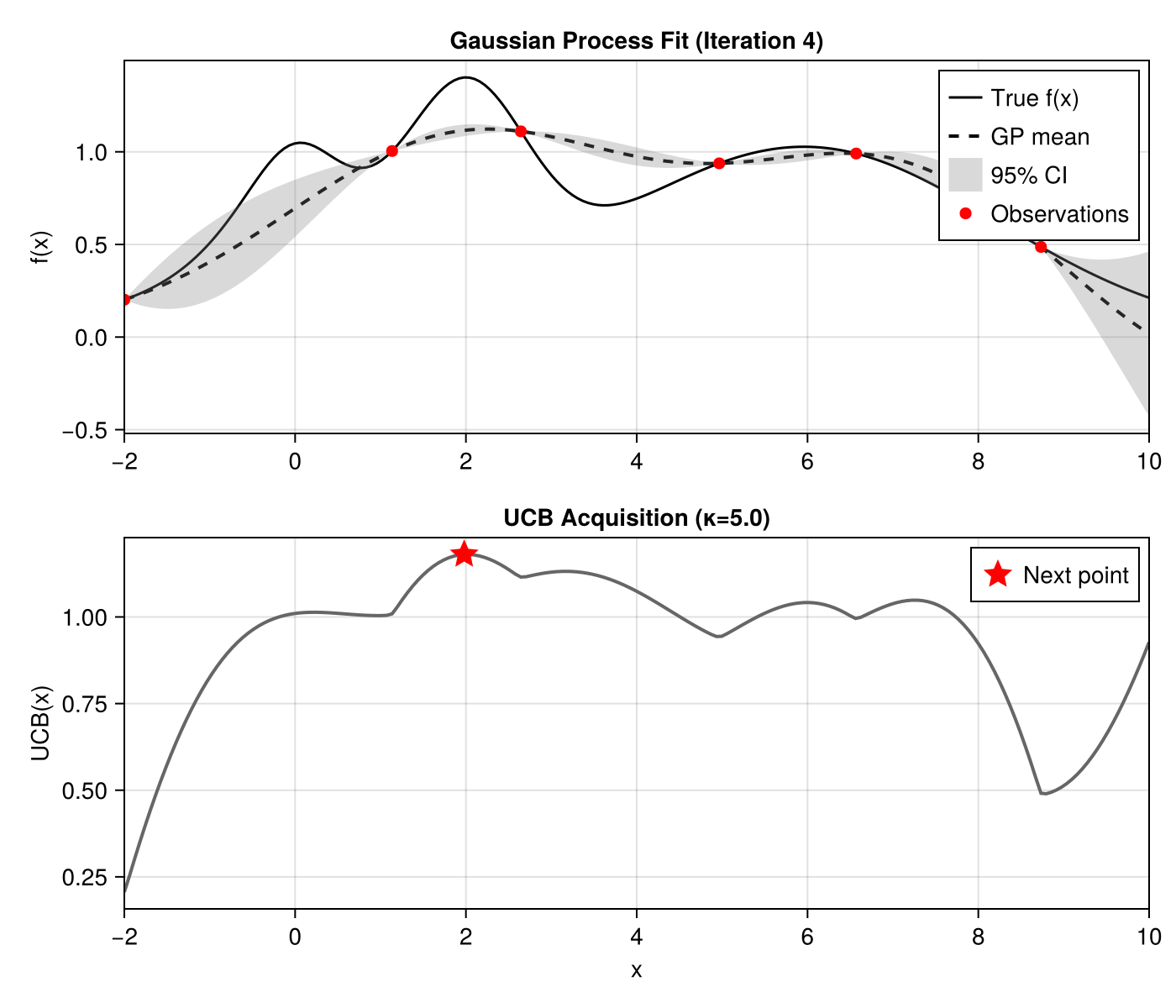

Iteration 4: Discovery

After a few iterations, the algorithm has discovered the peak near x ≈ 2 and begins exploiting it.

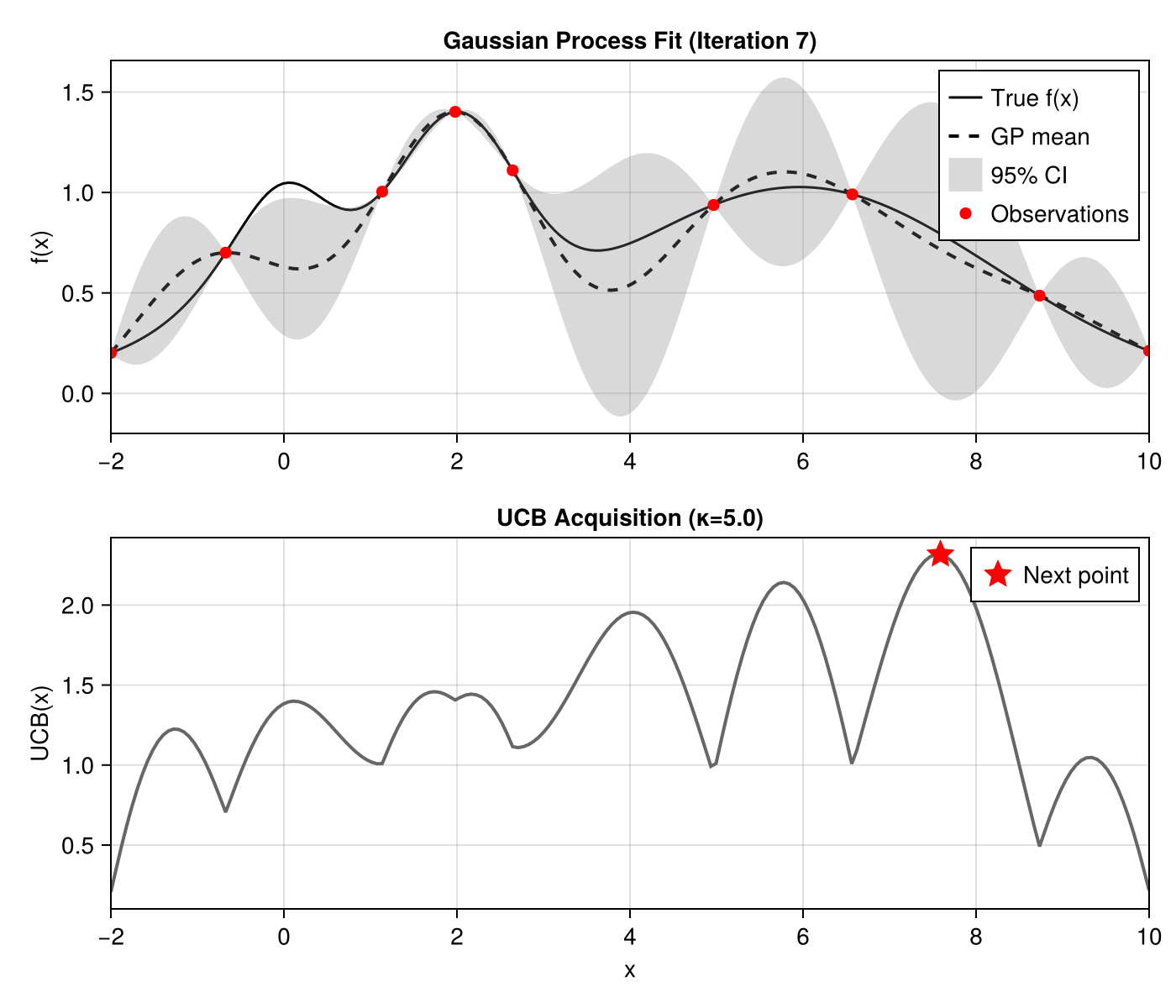

Iteration 7: Convergence

By iteration 7, the GP accurately models the true function and the best observation is very close to the true optimum:

• Best found: x* = 1.98, f(x*) = 1.40
• True optimum: x* = 2.0, f(x*) = 1.40

Running the Example

julia --project=. examples/bayesian_optimization.jl

This generates bo_step_0.png through bo_step_7.png in the examples/ directory.

Extensions

This basic example can be extended with:

• Expected Improvement (EI) acquisition function
• Separable/ARD GP via new_gp_sep() for multivariate optimization
• Noisy objectives with larger nugget optimized via jmle_gp!()
• Batch optimization by selecting multiple points per iteration
